Description

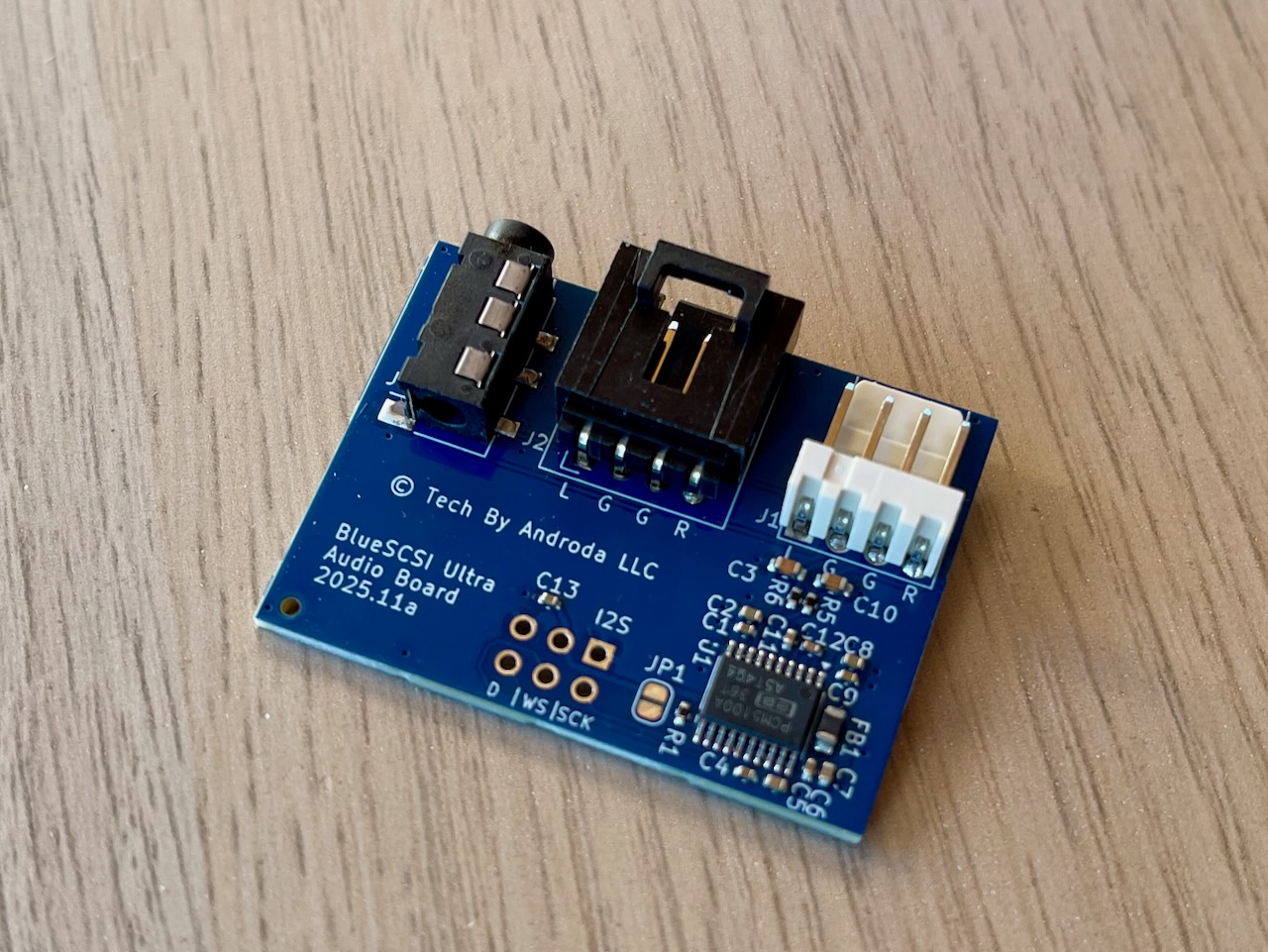

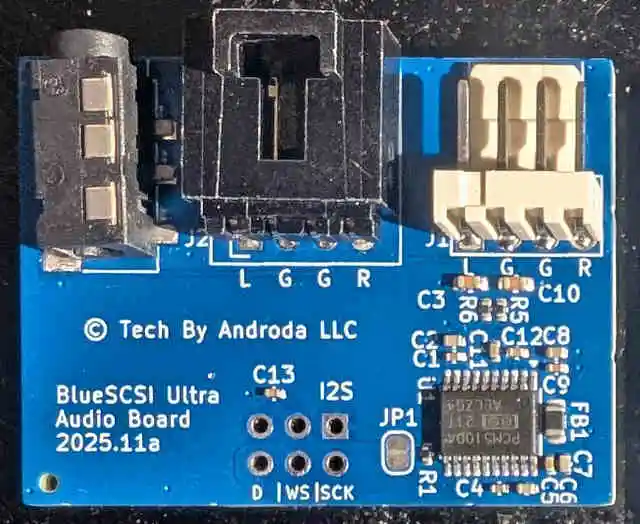

The BlueSCSI Ultra Audio Board interfaces with BlueSCSI Ultra – Narrow 50 Pin and BlueSCSI Ultra – Wide 68 Pin over I2S to allow output for CD audio emulation.
The following connectors are available:
- 3.5mm headphone jack (output)
- Vintage Apple CD-ROM connector (input)
- Standard PC CD/DVD audio header (input)
Note that this interface is not for the BlueSCSI v2 Desktop. Audio functionality for BlueSCSI v2 Desktop is provided by the BlueSCSI v2 Desktop S/PDIF Audio Link.
