BlueSCSI Ultra – Wide 68 Pin

Price range: € 76,00 through € 79,00

Now On Pre-Order!
Please allow a few weeks for delivery while we get everything ready. Pre-orders will be shipped in the order they are received.

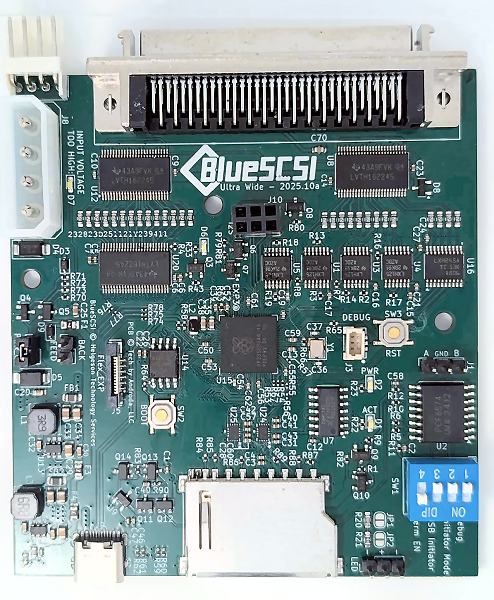

BlueSCSI Ultra – Wide 68 Pin is a new and improved version of the popular BlueSCSI Desktop v2, now with a 68-pin connector (SCSI-2).

To be used internally with a 68-pin SCSI cable, typically to replace the SCSI hard drive of an older computer.

This model has configurable SCSI termination through a DIP switch, and an LED pin to connect an existing hard drive activity LED.

It also features Initiator Mode, which lets BlueSCSI communicate directly with other SCSI devices, without the need for a host (like a computer). Very useful to create direct copies of existing SCSI hard drives!

Up to 30 MB/sec read speeds (depending on your computer and SD card)

See below what’s new!

We are selling revision 2025_10a of the hardware.

SKU: bluescsi-ultra-wide-68pin Category: Tags: , , Brand:

Description

What’s New?

Power

Berg and Molex connectors are available. Powering the BlueSCSI Ultra – Wide 68 Pin through the SCSI connector is not possible.

Networking

Networking is not available on BlueSCSI Ultra – Wide 68 Pin.

BlueSCSI Ultra Front Panel Compatibility

The BlueSCSI Ultra Front Panel (not yet available) will add a display to your BlueSCSI and several additional features such as:

  • A Web interface for remote configuration (from another computer or your phone)
  • Buttons for changing mounted images, adjusting settings, updating firmware and more

BlueSCSI Ultra – Wide 68 Pin directly supports the BlueSCSI Ultra Front Panel.

Audio Output

BlueSCSI Ultra – Wide 68 Pin supports the BlueSCSI Ultra Audio Board for direct line level CD audio.

DIP Switches for Options

Switches are now used instead of jumpers. The following options are configurable with switches:

  • Debug mode
  • Initiator mode
  • SCSI Termination

Headers remain for Power On, Back Feed and External LED.

Printed Tray

All trays for the BlueSCSI v2 Desktop are compatible with BlueSCSI Ultra – Wide 68 Pin (the dimensions and mounting screw locations are the same).

Default Tray

You may choose the default 3D-printed tray for your BlueSCSI Ultra – Wide 68 Pin. It’s available in Blue, Black and Platinum. If you select a random colour, your tray may be in one of the three colours, but could very well be something a little crazier (orange? green? who knows?).

Desktop v2 Regular tray - Top
The BlueSCSI Desktop default  tray from the top
Desktop v2 Regular tray - Bottom
The BlueSCSI Desktop default tray from the bottom



Custom Trays

You can also select a custom 3D-printed tray designed for specific purposes. If you do so, make sure you select the “No Default Tray” option on this page so you don’t end up with the default tray in addition to your custom tray. The following custom trays are available:

Shipping

We ship from Belgium to all continental European countries, and all countries of the European Union. In nearly all cases, your order will be mailed as a letter, free of custom fees.

More details can be found in the FAQ.

Software Licence

Firmware updates and GPLv3 source can be found at https://github.com/BlueSCSI/BlueSCSI-v2/.

Additional information

Tray Colour

Blue, Black, Platinum, Random, No Default Tray
